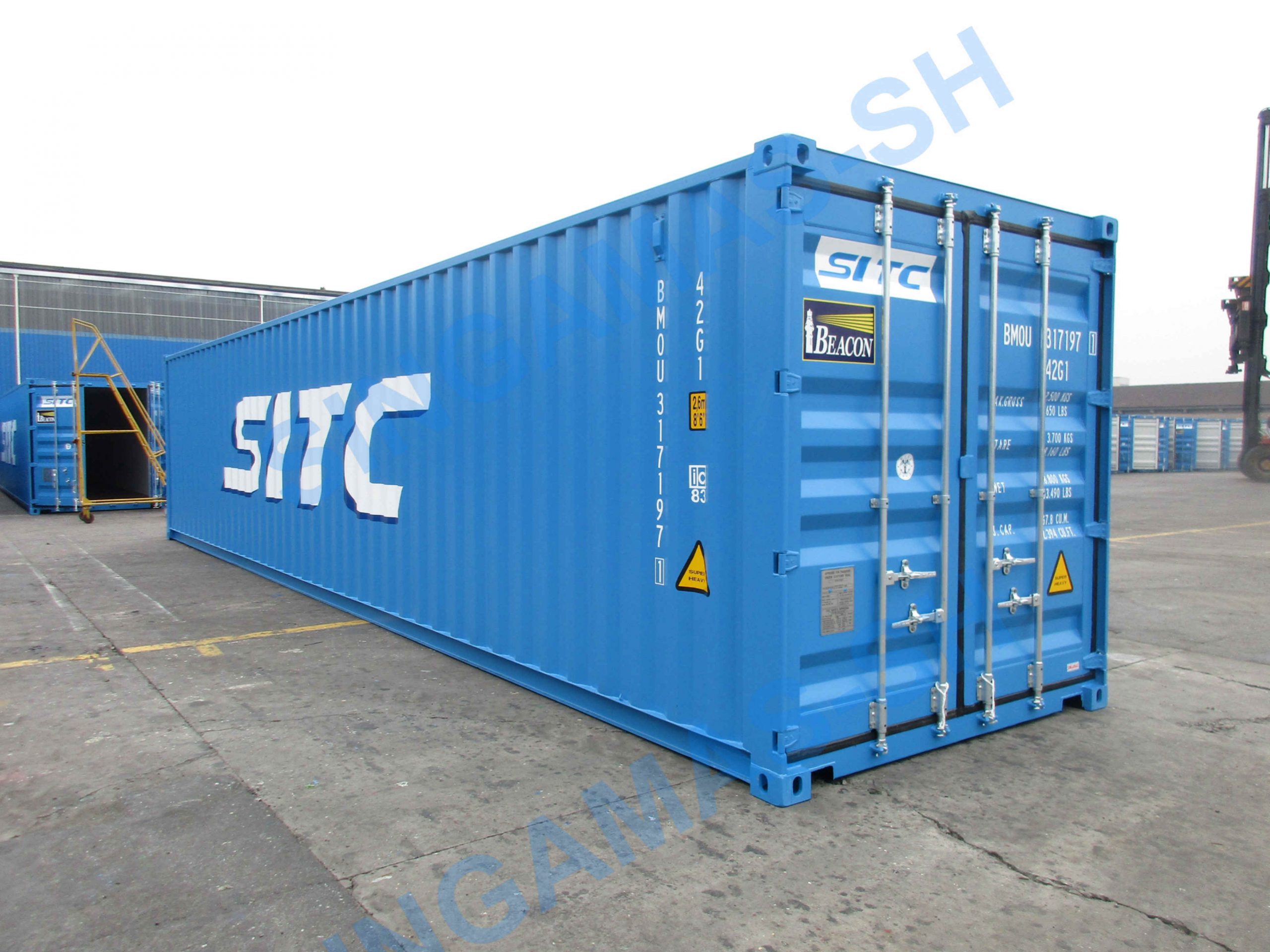

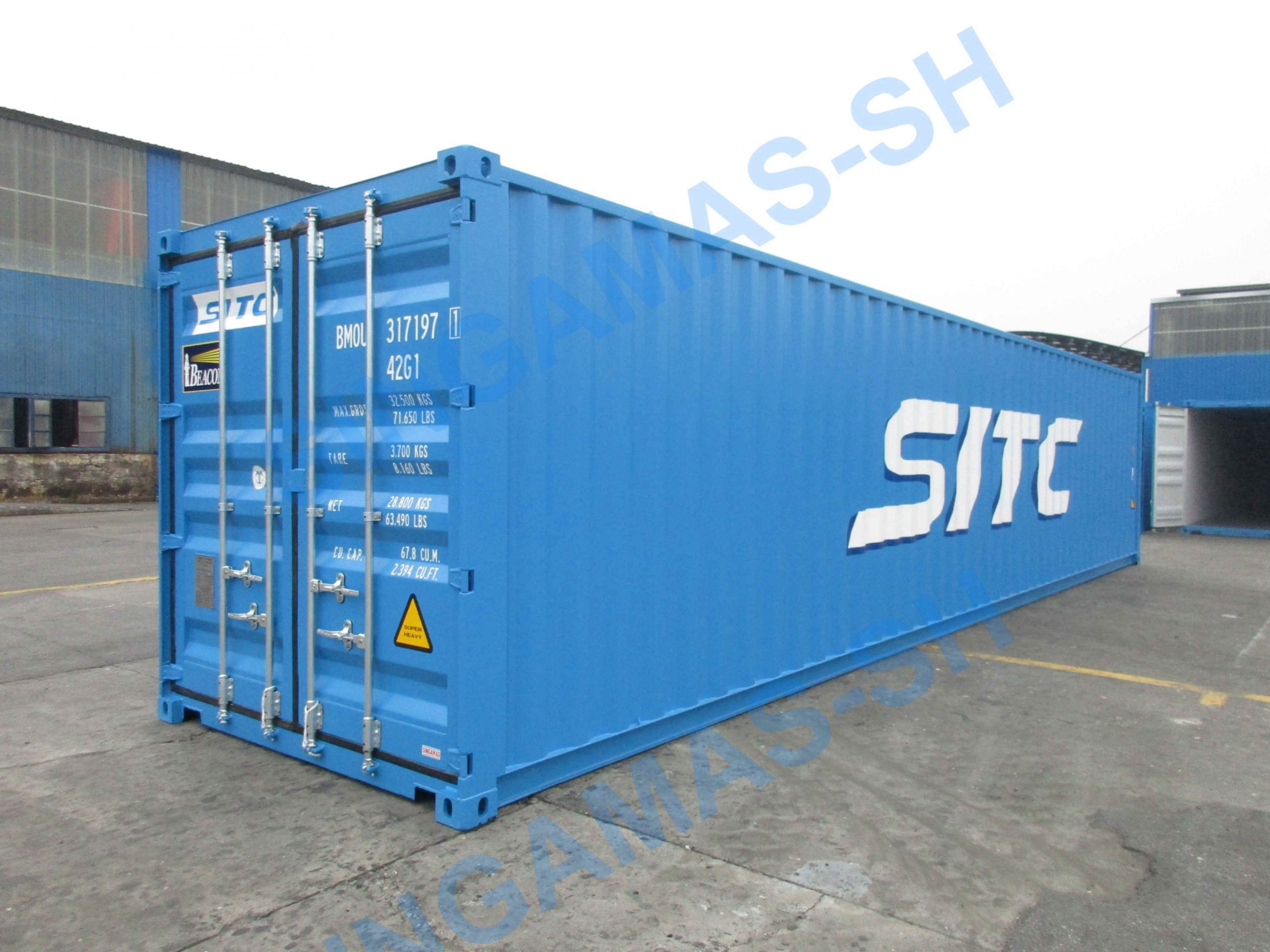

           40'GP干货箱
the_title();
the_title();
the_title();

产品名称:

40'GP干货箱

40'GP干货箱
the_title();
the_title();
the_title();
服务热线:021-33791529

1、用于海运、铁路、公路运输。

2、符合ISO 1496-1/668/6346/1161标准。

产品介绍

External 箱外 Weights 重量
Length长度 Width宽度 Height高度

Max Gross Weight

最大总重

Tare Weight

自重

Max Payload

最大载重

12,192 mm 2,438 mm 2,591 mm 32,500 Kg 3,550 Kg 28,950 Kg
40’ 8’ 8’-6” 71,650 Lbs 7,830 Lbs 63,820 Lbs
Internal 箱内 Door Opening 开门尺寸
Length 长度 Width 宽度 Height 高度 Width 宽度 Height 高度
12,032 mm 2,352 mm 2,393 mm 2,340 mm 2,280 mm
39'-5 21/32" 7’- 8 19/32" 7’-10 7/32” 7’-8 1/8” 7’-5 49/64”
Allowable Stacking Weight 允许堆码重量 Cubic Capacity 容积
216,000 Kg 476,190 Lbs 67.8 M3 2,394 FT3
