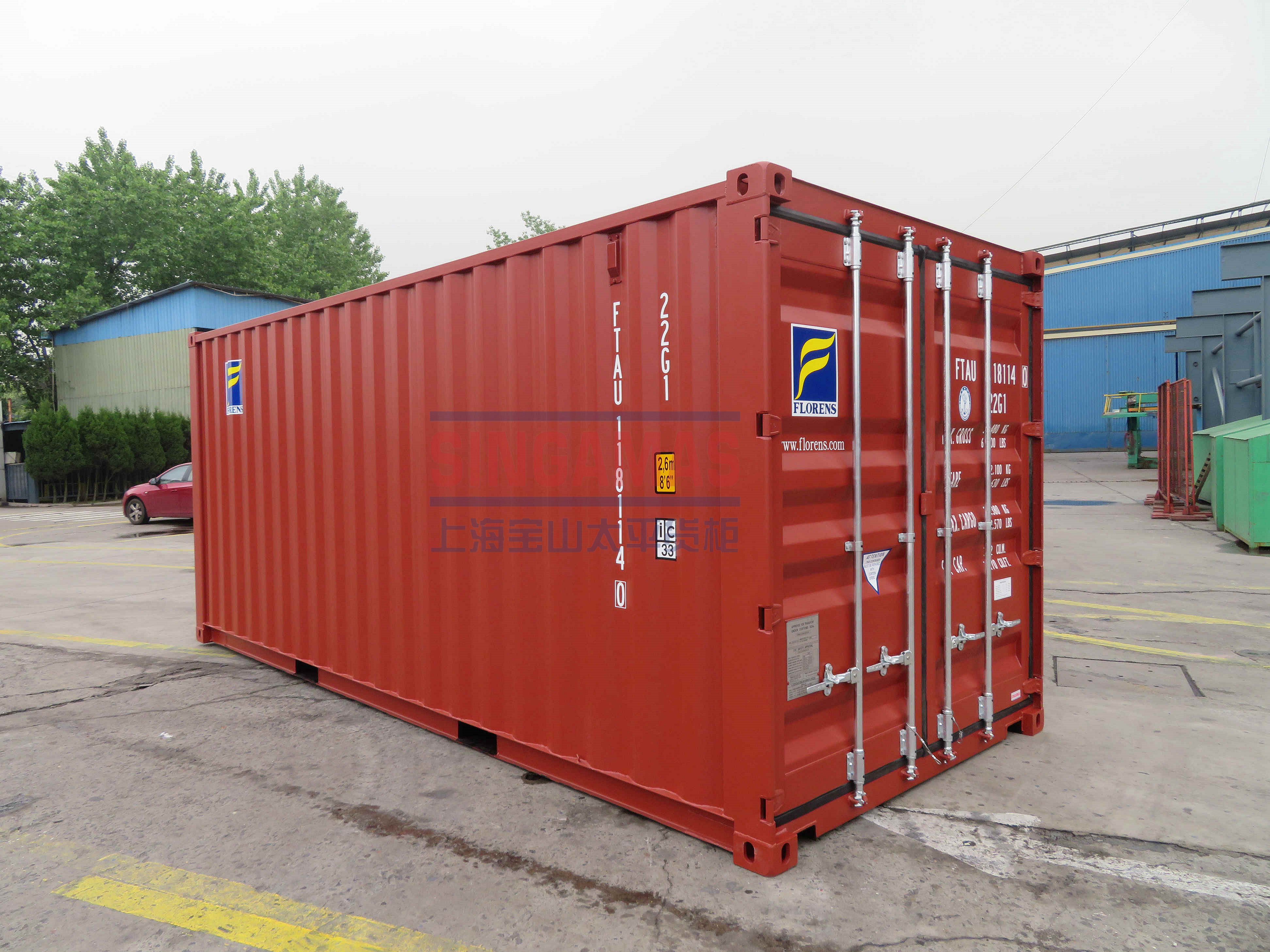

           20'GP干货箱
the_title();
the_title();
the_title();

产品名称:

20'GP干货箱

20'GP干货箱
the_title();
the_title();
the_title();
服务热线:021-33791529

1、用于海运、铁路、公路运输。
2、符合ISO 1496-1/668/6346/1161标准。

产品介绍

External 箱外 Weights 重量
Length长度 Width宽度 Height高度

Max Gross Weight

最大总重

Tare Weight
自重
Max Payload
最大载重
6,058 mm 2,438 mm 2,591 mm 30,480 Kg 2,100 Kg 28,380 Kg
20’ 8’ 8’-6” 67,200 Lbs 4,630 Lbs 62,570 Lbs

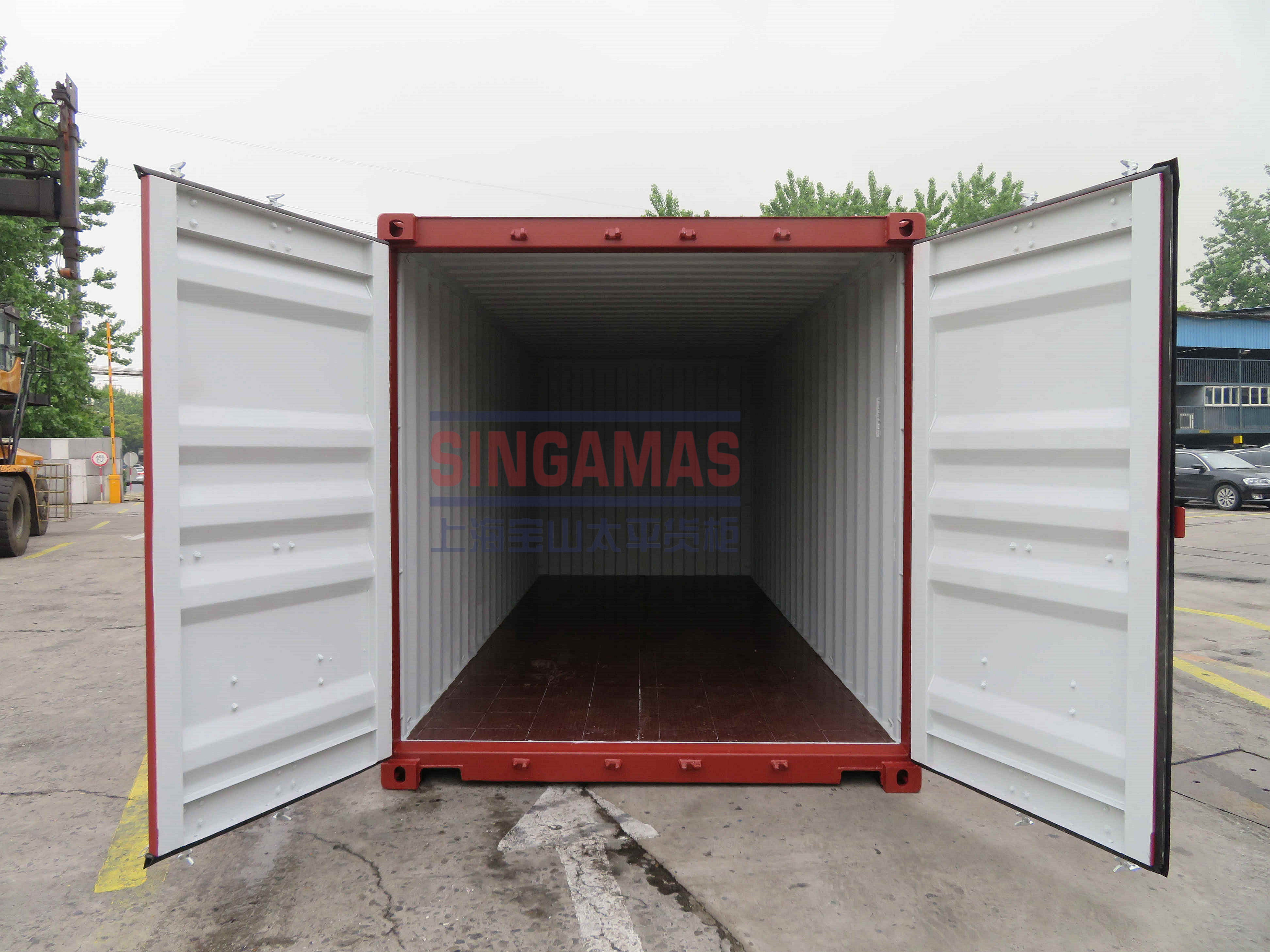

Internal 箱内 Door Opening 开门尺寸
Length 长度 Width 宽度 Height 高度 Width 宽度 Height 高度
5,898 mm 2,352 mm 2,393 mm 2,340 mm 2,280 mm
19'-4 13/64" 7’- 8 19/32" 7’-10 7/32” 7’-8 1/8” 7’-5 49/64”
Allowable Stacking Weight 允许堆码重量 Cubic Capacity 容积
216,000 Kg 476,190 Lbs 33.2 M3 1,173 FT3
